12 - Optics Questions Answers

Physics >> Optics >> Refraction IIT JEE
Asked By: BHASKAR JHA
is this question helpfull: 0 0 submit your answer
Joshi sir comment

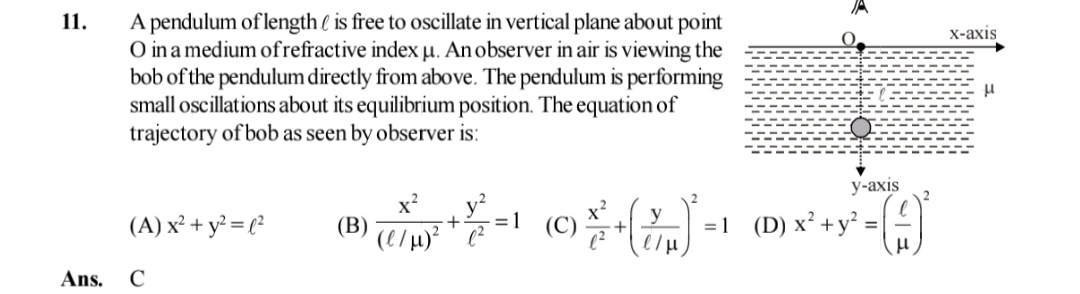

Let α is small angular displacement As shown x = lsinα and y = lcosα/μ now use sin2α+cos2α = 1

Can You Please Explain the Cartesian method for mirror and Lens?

Asked By: BONEY HAVELIWALA
is this question helpfull: 3 0 submit your answer
Joshi sir comment

Cartesian method is the method of sign convention

Sign Convention for Spherical Mirrors and Thin Lenses


                                   Spherical Mirrors                   Lenses
Focal Length            - for concave mirrors            + for a converging lens
                              + for convex mirrors               - for a diverging lens
Object Distance           - real object                     - real object
                                + virtual object                 + virtual object


Image Distance           - real image                          + real image
                                 + virtual image                   - virtual image
Magnification            + for erect image                 + for erect image
                              - for inverted image            - for inverted image

when two plane mirror inclined to each other at an angle 60degree , the number of image =?

please explain with ray diagram .

Asked By: ASHOK SOLANKI
is this question helpfull: 2 0 submit your answer
Joshi sir comment

angle is 60

if object is placed symmetrical then images = 360/60 - 1 = 5

if unsymmetrical then 360/60 = 6

what is defination of polarization



Asked By: SAIFALI SALIM JAMADAR
is this question helpfull: 2 0 submit your answer
Joshi sir comment

Polarisation is the phenomenon to turn light in a particular direction by any means

for an aperture of size a illuminated by a parallel beam of light having wavelength λ the fresnel distance is

ans a^2/λ       what is fresnel dist.??

Asked By: SARIKA SHARMA
is this question helpfull: 2 0 read solutions ( 1 ) | submit your answer
Joshi sir comment

fringe width β = λD/d

for β = d , D is called fresnel distance

so d2 = λD

so D = d2/ λ

now change d by a

which physical quantity has its unit as LUX??

Asked By: SARIKA SHARMA
is this question helpfull: 3 1 submit your answer
Joshi sir comment

its illuminance

Physics >> Optics >> Refraction Medical Exam

if ω1 &ω2 are dispersive powers of lenses of focal length f1 & f2 respectively . then the condition of chromatic aberration for two lenses in contact is

1) ω1/ω2 = f2/f1

2) ω1/ω2 = f1/f2

3) ω1/ω2= - f1/f2

4) ω2/ω1= f1/f2

Asked By: HIMANSHU
is this question helpfull: 2 1 submit your answer
Joshi sir comment

3 is the true condition and can be proved

Physics >> Optics >> Photometry Medical Exam

IN D QUES OF RED ROSE IN WHICH  WE HAVE TO FIND COLOR WHY THE COMPLEMENT COLOR OF BLUE i.e ORANGE &RED WILL B SEEN

Asked By: SARIKA
is this question helpfull: 4 0 submit your answer
Joshi sir comment

since only blue light is present so any other colour can not be the answer

Physics >> Optics >> Photometry Medical Exam

A RED ROSE IS KEPT IN BLUE LIGHT. WHAT COLOUR OF ROSE WILL BE SEEN?

Asked By: SARIKA
is this question helpfull: 4 1 submit your answer
Joshi sir comment

Since it is red rose it means it will absorb all colours other than red so in blue light it will be seen as black.

A transparent sheet of paper of refractive index 'n' and thickness 't' is pasted on one of the slits in YDSE  which uses monochromatic light of wavelength  'x'  . How many fringes will cross through the centre if the paper is removed ?

Asked By: NITIN RAO
is this question helpfull: 5 0 submit your answer
Joshi sir comment

total path difference created by the paper = (n-1)t

geometrical path difference = yd/D

so position of central maxima will be obtained by eq. (n-1)t  = yd/D

here y is position of central bright, d is slit appeture and D is distance between slits and screen.

so y = (n-1)tD/d

width of maxima = xD/d ,                 x is wavelength of light

so no. of fringes shifted = [(n-1)tD/d]/[xD/d] = (n-1)t/x
