4 - Simple Harmonic Motion Questions Answers

Asked By: TUSHAR GUPTA
is this question helpfull: 0 0 submit your answer

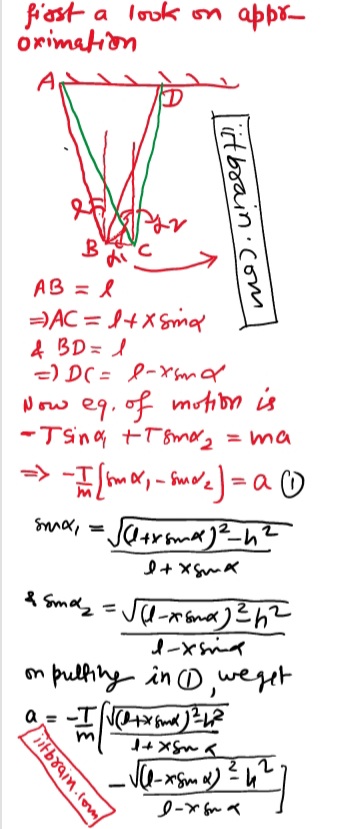

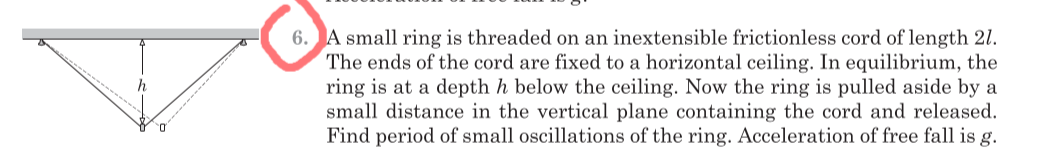

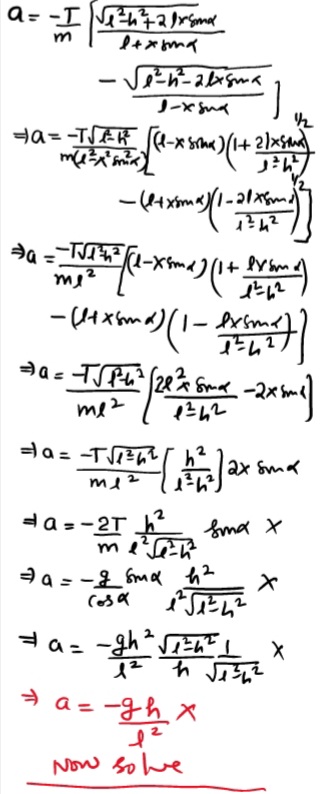

small ring is threaded on an inextensible frictionless cord of length 2l.

The ends of the cord are fixed to a horizontal ceiling. In equilibrium, the

ring is at a depth h below the ceiling. Now the ring is pulled aside by a

small distance in the vertical plane containing the cord and released.

Find period of small oscillations of the ring. Acceleration of free fall is g.

Asked By: ABHISHEK KHANDELWAL
is this question helpfull: 1 0 submit your answer
Joshi sir comment



TWO PENDULUM HAVE TIME PERIODS T &5T/4. THEY STARTS SHM AT THE SAME TIME FROM THE MEAN POSITION . WHAT WILL BE THE PHASE DIFFERENCE B/W THEM AFTER D BIGGER PENDULUM COMPLETED ONE OSCILLATn ??

ans 900

Asked By: SARIKA SHARMA
is this question helpfull: 6 1 submit your answer
Joshi sir comment

When bigger pendulum will complete its one oscillation, the smaller one will complete [1+(1/4)] oscillation. so phase difference = 2π*(T/4)/T = π/2

2 comparable masses m1 and m2  r orbiting about their bodycenter o at distance r1 and r2 from  their  body center respectively  with a common period T. the squar of time period  ?

Asked By: SHUBHAM VED
is this question helpfull: 5 0 submit your answer
Joshi sir comment



According to the diagram

Gm1m2/(r1+r2)2 = m1r1ω2 = m2r2ω2

compare first part with either second or third part of the given equation for getting ω2 then find T2
